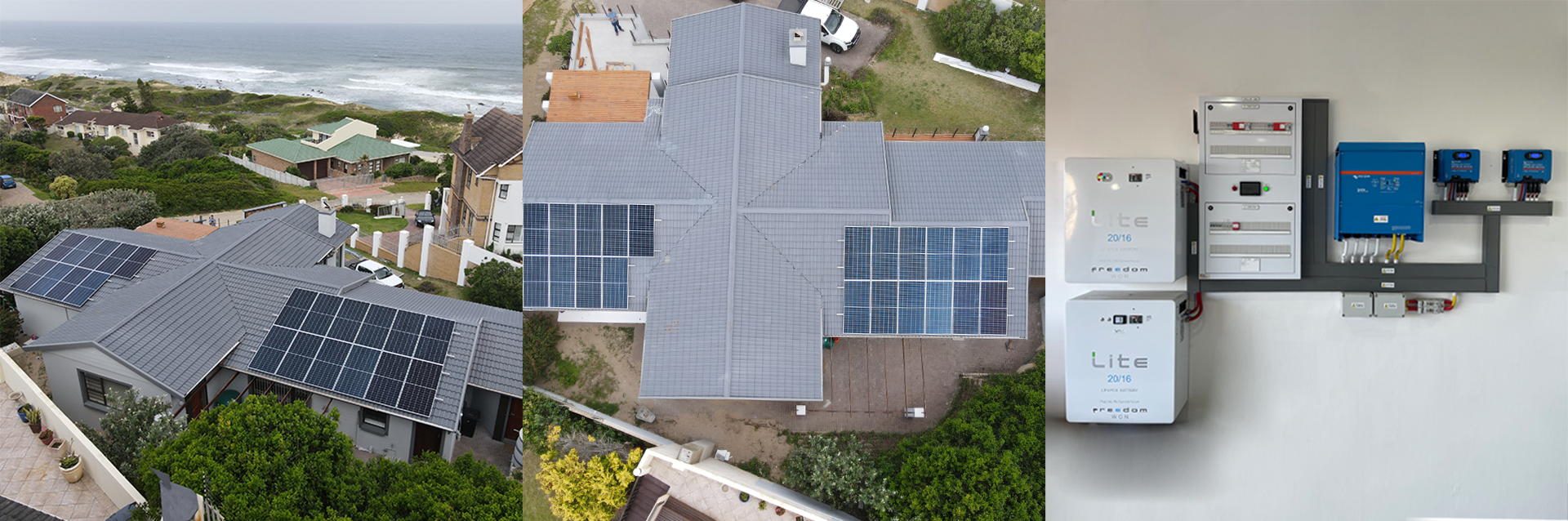

System Specifications:
11.235kWp PV system supplying a single-phase domestic residence comprising of the following solar components:
- 1x 15kVA Victron hybrid inverter
- 2x 250Voc/100A Victron SmartSolar MPPT charge controllers
- 2x Freedom Won 20kWh LiFePO4 batteries
- 21x 535Wp JA Solar monocrystalline PV modules
- 1x Custom built 4x 28 Way Solar AC/DC distribution board complete with switchgear, AC & DC surge, and fuse protection
Client Brief:
This customer bought a beautiful house which he was busy doing a total revamp on. He approached us with the instruction to give him energy security as he didn’t want to be reliable on utility power and water. Because we couldn’t do any power monitoring, we had to use our experience combined with the existing infrastructure and client needs to put a PV system together. Since commissioning the PV system mid-August 2021, it has been able to supply in the region of 95% of the clients every day energy needs, even with the rainy weather experienced lately. The VRM (Victron Remote Monitoring) platform gives both the client and the installer the ability to monitor and control the PV system remotely.
7 gleneagles drive

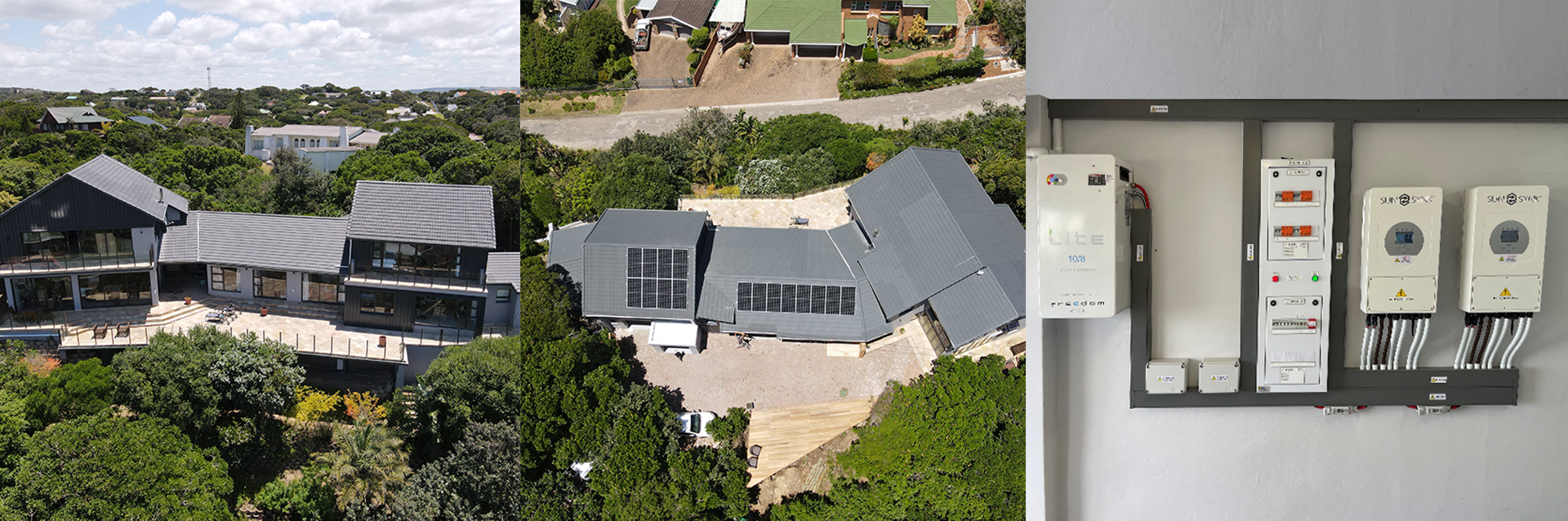

System Specifications:
8.64kWp PV system supplying a single-phase domestic residence comprising of the following solar components:
- 2x Sunsynk 5kW hybrid inverter
- 1x Freedom Won 10kWh LiFePO4 Battery
- 16x 540Wp JA Solar monocrystalline PV modules
- 1x Custom built 4x 12 Way Solar AC/DC distribution board complete with switchgear, AC & DC surge, and fuse protection
Client Brief:
This customer relocated from Gauteng and permanently moved into their holiday home in Port Alfred. As part of a total revamp, they decided to equip their home with a PV system to give them energy security in the event of load shedding. The existing loads were split up into essential and non-essential groups of which the latter only benefits from solar energy if both excess solar energy and the grid are available. The essential loads have the benefit of battery backup should a utility outage occur for whatever reason.
